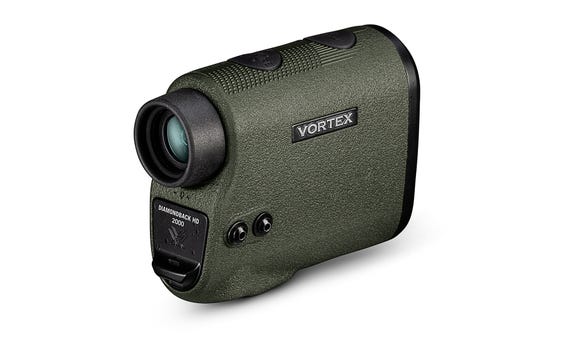

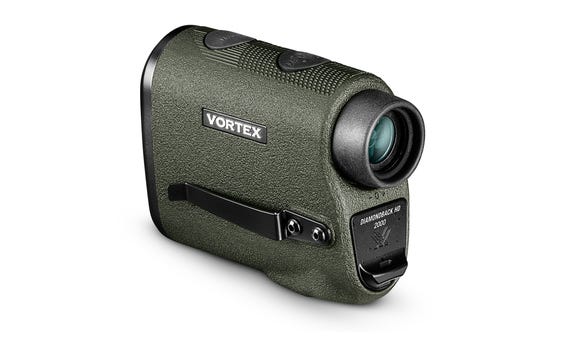

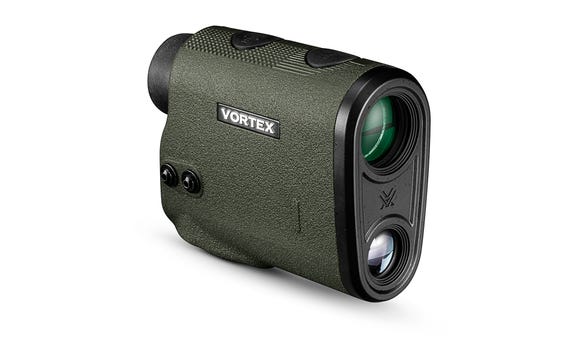

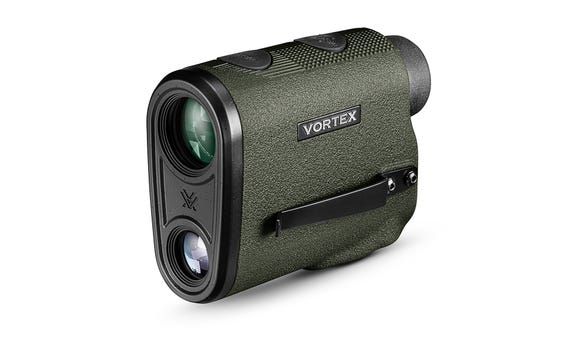

Made for practical hunters who value no-excuses performance, Diamondback® HD 2000 is your ranging workhorse in the field. Built tough to withstand the abuse your hardest hunts can dish out, its easy-to-use controls and high-definition optical system handle everything from point-blank shots in tight timber to longer-distance game with shoulder-crushing accuracy. Simple. Tough. Reliable. It’s the rangefinder that lives up to its tag-punching promise, hunt after hunt.
| Magnification |
7x |
| Objective Lens Diameter |
24 mm |
| Reticle |
HCD Corrected Shoot-To Range |
| Eye Relief |
16.0mm |
| Angular Field of View |
6.4º |
| Linear Field of View |
335' @ 1000 yds |
| Range Reflective (yards) |
Up to 2,000 yds. |
| Range Tree (yards) |
Up to 1,800 yds. |
| Range Deer (yards) |
Up to 1,400 yds. |
| Min Range |
5 yds. |
| Accuracy |
1 yds. @100 yds. |
| Length |
4.1" |
| Height |
3.1" |
| Width |
1.8" |
| Weight |
7.6 oz. |
| Max Angle Reading |
+/- 60º |
| Ranging Modes |
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
Scan Feature: Displays continuous distance readings while panning across a landscape.
|
| Target Modes |
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
|
| HD Optical System |
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
| XR™ Lens Coatings |
Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance. |
| ArmorTek®
|
Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.. |
| Rubber Armor |
Provides a secure, non-slip grip, and durable external protection. |
| Red OLED Display |
Optimized for low light. |
| Ranging Format |
Range in yards or meters. |
| Diopter |
Adjusts for differences in a user's eyes. Located on eyepiece. |
| Tripod Adaptable |
Allowing use on a tripod or car window mount. |
| Waterproof |
Designed to withstand harsh weather conditions. |
| Shockproof |
Designed to withstand the highest levels of impact. |
