The Vanquish Rimfire Rifle is a combination of our Vanquish Competition Chassis along with an MPA Rimfire Elite Action chambered for rimfire applications.
Available in a multitude of barrel profiles and muzzle threads, the rifle is setup specifically for IPRF/PRS/NRL rimfire competitions.
The rifle will come standard with an ATS Barrel Tuner.
The chamber in this rifle is setup to run both Lapua/SK ammo and Eley ammo (different rim thicknesses) with similar bullet profiles.
We will also offer this rifle in either 1:12 or 1:16 twist rate. Lets us know if you need help in determining the correct twist rate for your application.

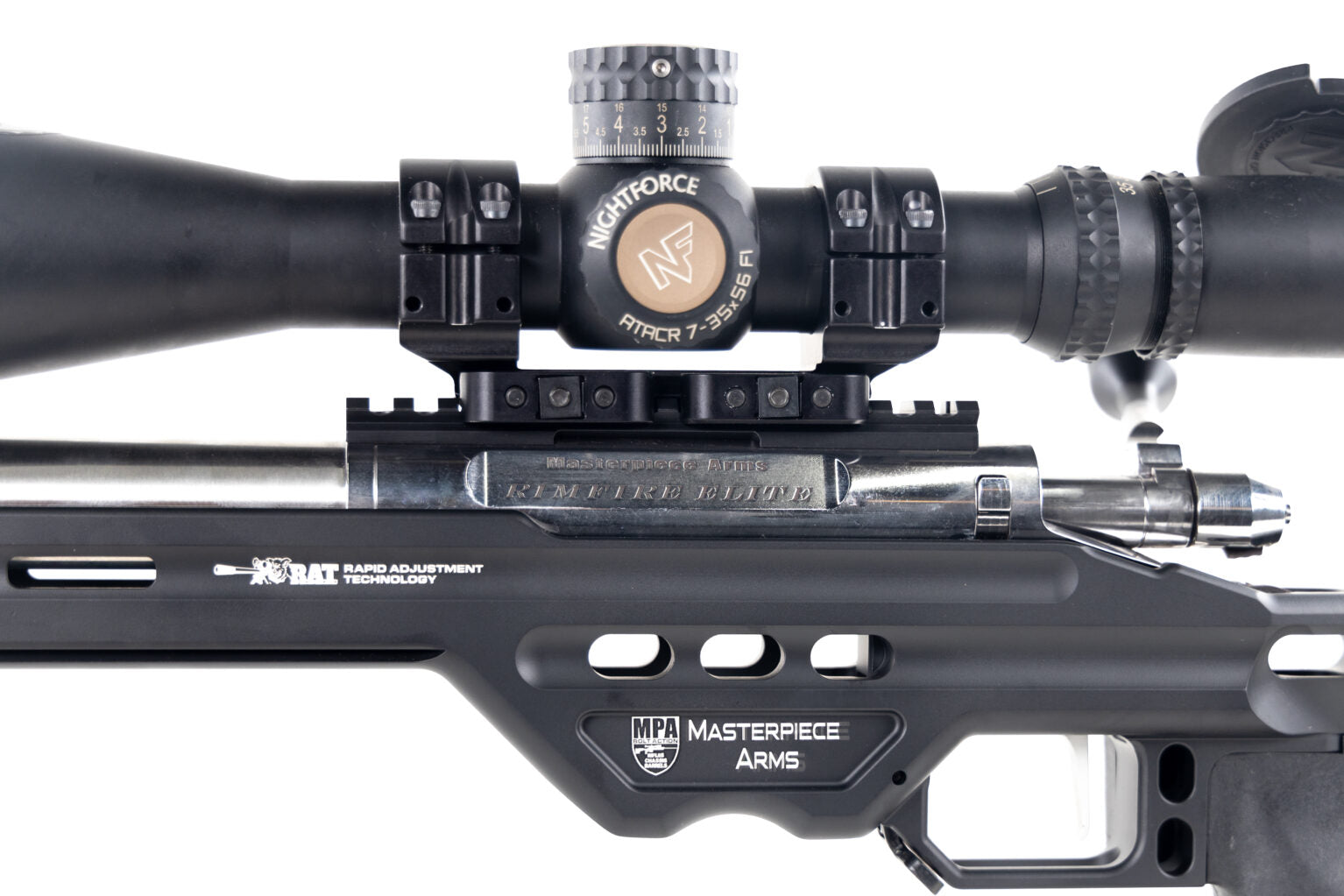

Action:
- MPA Elite Rimfire Action
- 2 Lug Head
- 60 Degree Bolt Throw
- 30 MOA Scope Rail
- Black Nitride Coated Bolt
- Polished Stainless Action Body
- Dual Claw Extractors
Barrel:
- 22 LR – 416RQ Stainless Steel
- Precision Gun Drilled, Reamed and Honed
- Pull Button Rifled
- Stress Relieved
- Polished
- Hand Lapped
- Bore and Land Inspected on Video Borescope
- Sheffield Air Gage Inspection to .0001″ on Bore and Rifle Land Variation
- Chamber is indicated within .0001″ or less – to the bore of the rifle
- 1:12 or 1:16 Twist Rate
- Barrel is Crowned and Not threaded. ATS Tuner is Clamp on Style.
- If you want a threaded barrel, please let us know in the Comments section at checkout
- MPA Match Heavy Barrel Profile (1.050″ at the muzzle)
- Barrel Length – 23″
Chassis System:
- Masterpiece Arms Vanquish with Drop Down Bag Rider
- Lightweight Competition Buttstock Design
- (2) Nesting Bridges
- Magwell Plate System Ready
- Produced from 6061 Aluminum
- V-Bedding System with Additional clearance for Glass Bedding Action and Straight Section of Barrel
- MPA Matrix with Adjustable Cheek Riser, Length of Pull
- Built In Bag Rider with Butthook
- V4 Spigot Mount (Pic Rail and Arca Swiss Rail)
- Cerakote Finish – Multiple Colors Available
- Built In Inclinometer leveling system
- (2) Grips (Select at Checkout)
- All Trigger Finger Supports
- All Thumb Shelfs
- R.A.T. System Compatible
- Mag Blocker
Barrel Tuner:
- ATS Barrel Tuner – Clamp On Style
Trigger:
- MPA Elite Trigger (MPA Trigger built by Bix n Andy)
- Pull Weight: 4 oz-2 lbs
Rifle Case:
Magazine:

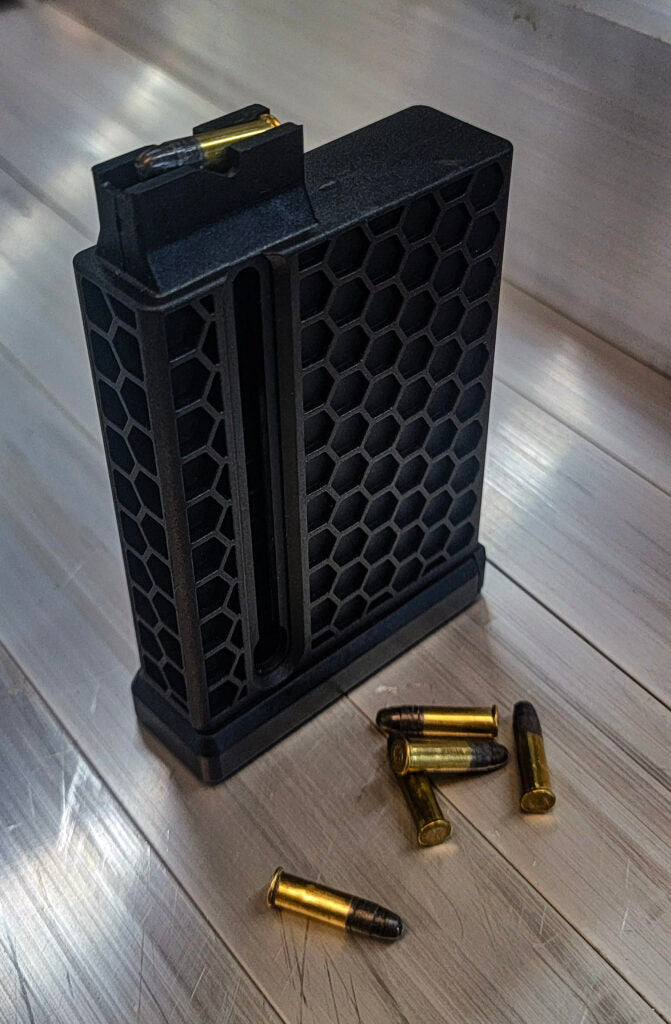

- L3I Elite Rimfire Magazine – 14 Round
